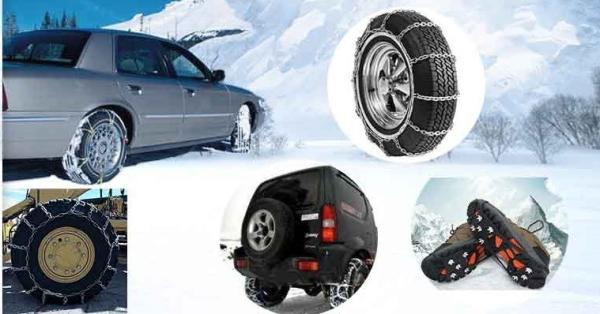

IMPORTANT: Tire chains should be fitted to the tires before actual use is required.

To deter mine the correct product for your vehicle based on the size of tire you have

How to read your tire size:

• Tire Width is 225mm wide, the Aspect ratio is 75% and the tire is mounted on a Wheel that is 16 inches in Diameter.

• Tire Width is the measurement from one sidewall to the other.

• Aspect Ratio is the height of the sidewall (from the edge of the inner rim to the tread) in relation to the section width. (In the above example, the tire’s height is 75% of its width of 225mm.)

• Wheel Diameter is simply the measurement of the wheel from one end to the other.

• The letter “P” means the tire was designed to be fitted on a passenger vehicle (cars, minivans, SUVs and light duty pickup trucks). “LT” would mean light truck. The letter “R” is regarding the construction of the tire – Radial, meaning the layers run radially across the tire.

•


• Suitable Tire Size Table

• 1.European standard snow chain




  ITEM	TIRE SIZE
  010 snow chain	125-12 165/70-10 35/70-13 140/70-12 145-10 145/70-12 155/80-10 500-10 150/65-315
  020 snow chain	145/70-12 60/60-315 155/70-12 160/65-315 35-13 135/70-13 140-12 145/70-13 550-12 155/65-13 135-12 165/55-13 175/50-13 150/65-340 145-12
  030 snow chain	150/65-345 150-12 160/65-340 135-14 165/60-14 125-15 165/60-13 65/70-12 165/65-13 155/65-14 185/55-13 175/60-13 155/65-340 155/70-13 560-12 145-13 155-1 140-13
  040 snow chain	175/70-1 55/70-14 165/65-14 90/55-340 65/70-13 600-12 180/65-315 180/60-340 155-13 175/65-13 175/60-14 180/60-13 170/65-340 135-15 195/55-13 145-14
  050 snow chain	520-14 5/70-13 155/70-15 175/65-14 190/55-365 165/60-15 600-13 180/65-340 195/60-13 155-14 560-13 185/55-14 185/50-15 185/65-13 185/60-14 165-13 560-14 195/50-14 165/70-14 170/65-365 145-15 590-13
  060 snow chain	165/75-14 175/70-14 185/65-14 195/65-340 560-15 185/70-13 185/55-15 165/70-15 205/60-13 155-15 195/60-365 195/60-14 175-13 195/50-15 195/65-13 175/65-15 195/55-15 200/65-340 180/65-365
  070 snow chain	210/50-365 175/75-14 175/70-15 195/65-14 195/60-15 205/50-15 205/55-14 195/50-16 600-15 200/60-365 200/55-390 200/65-340 185/60-15 195/70-13 205/65-13 210/55-365 205/55-15 180/65-390 220/50-365 195/55-15 185/70-14 640-13 185/65-15 175-14 205/60-14
  080 snow chain	195/60-15 175-14 195/70-14 225/55-14 210/55-390 165-15 205/65-14 650-14 185/75-14 185/70-15 215/60-14 205/60-15 185-14 225/50-15 205/55-15 185-13 220/55-365 195/65-15 215/50-16 205/70-13 195/75-14 205/50-16 200/60-15 190/65-390 200/60-390 175-15 210/65-365
  090 snow chain	205/55-16 195/70-15 205/65-15 225/50-16 175-16 175/75-16 225/60-14 225/55-15 205/60-16 185-15 205/70-14 220/55-390 215/60-15 215/55-16 195-14
  100 snow chain	215/70-14 225/60-15 230/60-15 205-14 215/65-16 215/60-16 205/70-15 235/50-16 240/55-390 215/70-15 225/60-16 220/65-390 235/55-15 225/55-16 195-15 235/60-15 215/65-15 225/65-15



  2. Tire size table for USA users(Snow chain)

  ITEM NO	TIRE SIZE
  1110	145R12 135R13
  1114	600-12 520-13 615-13 520-14
  1118	560-13 600-13 645-13 560-14
  1122	645-14 695-14 560-15 590-15
  1126	175R-13 185R-13 165R14
  1130	7.35-14 6.85-15 185R14 195/70R-14
  1134	185R-14 195R-14 205/70R-14 215/70R-14
  1138	8.15-15 8.25-15 205R-15 215R-15
  1142	8.55-15 8.85-15 9.00-15 215R-15




  1206.1806	600-12 155R-12 5.20-13 6.15-13 145R-13 155R-13 165/70R-13 135R-14
  1207.1807	5.60-13 6.00-13 6.45-13 165R-13 175R-13 5.60-14 155R-14
  1210.1810	6.95-14 175R-14 5.90-15 6.00-15 6.85-15 165R-15 175/70R-15
  1217.1817	6.50-13 6.00-14 6.45-14 175/70R-14 155R-15
  1230.1830	7.00-13 185R-13 195/70R-13 7.35-14 185R-14 185/70R-14
  1240.1840	7.00-14 7.75-14 195R-14 205/70R-14 6.50-15 7.35-15 185R-15 195R-15
  1250.1850	7.00-15 8.85-15 225R-15 230R-15 H70-15/HR70-15
  1254.1854	8.25-14 8.55-14 205R14 315/0R-14 7.75-15 8.15-15 205R15 205/70R-15 215/70R-15
  1255.1855	8.85-14 7.60-15 8.45-15 8.55-15 215R-15 F70-15 FR70-15 G70-15 GR70-15
  1262.1862	A60-13 AR60-13
  1263.1863	B60-13 BR60-13
  1264.1864	C60-13 CR60-13 D60-13 DR60-13 D60-13 D60-14 DE60-14
  1265.1865	C60-13 ER60-13 E60-14 ER60-14 E60-15 ER60-15
  1266.1866	F60-14 FR60-14 G60-14 GR60-14 F60-15 FR60-15
  1267.1867	H60-14 HR60-14 J60-14 JR60-14 G60-15 GR60-15 H60-15 HR60-15
  1268.1868	J60-15 JR60 -15 L60-15 LR60-15
  1269.1869	L60-14 LR60-14
  1284.1884	9.00-15 9.15-15 1.78-15 LR78-15
  2201.2801	7.00-24 6.00-14LT
  2203.2803	6.70-15LT 6.00-16LT
  2206.2806	7.10-15LT 6.50-16LT
  2209.2809	7.00-14LT EP78-14LT CR78-15LT
  2211.2811	7.00-15LT 7-17.5LT 9.00-15 9.15 -15 L78-15/LR 78-15
  2214.2814	7.50-17 7.00-18 8-19.5 7-22.5
  2216.2816	8.00-16.5LT GR78-15LT HR78-15LT FR78-16LT
  2219.2819	L84-15 235R15 7.00-15TR 7.50-15LT 7.00-16LT 8-17.5
  2221.2821	7.50-16LT 9.50-16.5LT 7.00-17
  2228.2828	8.25-15TR 8.25-16TR
  2229.2829	LR78-16LT
  2233.2833	6.50-20 7.00-20
  2237.2837	9.00-16LT 7.50-20 8-22.5
  2239.2839	8.25-20 9-22.5
  2241.2841	9.00-20
  2245.2845	10.00-20 11-22.5
  2249.2849	10.00-22 11-24.5
  2251.2851	11.00-20 12-22.5
  2253.2853	11.00-24
  2255.2855	12.00-20 11300-20 12-24.5
  2257.2857	12.00-24
  2271.2871	14.00-20
  2273.2873	14.00-24
  4206.4806	650-16LT
  4211.4811	7-17.5LT
  4214.4814	7.5-17 7.00-18 8-19.5 7-22.5
  4217.4817	8.00-16.5LT
  4219.4819	7.50-17 7.00-15TR 8.75 -16.5L 8-17.5
  4221.4821	7.50-16LT 9.50-16.5LT 7.00-17
  4222.4822	7.50-20 8-22.5
  4231.4233
  4231.4831	8.25-15TR
  4233.4833	6.50-20 7.00-20
  4239.4839	8.25-20 9-22.5
  4241.4841	9.00-20 10-22.5
  4245.4845	10.00-20 11-22.5
  4249.4849	10.00-22 11-24.5
  4251.4851	11.00-20 12-22.5
  4253.4853	11.00-24
  4255.4855	12.00-20 11.00-22 12.00-45
  4257.4857	12.00-24
  4271.4871	14.00-20
  4273.4873	14.00-24
