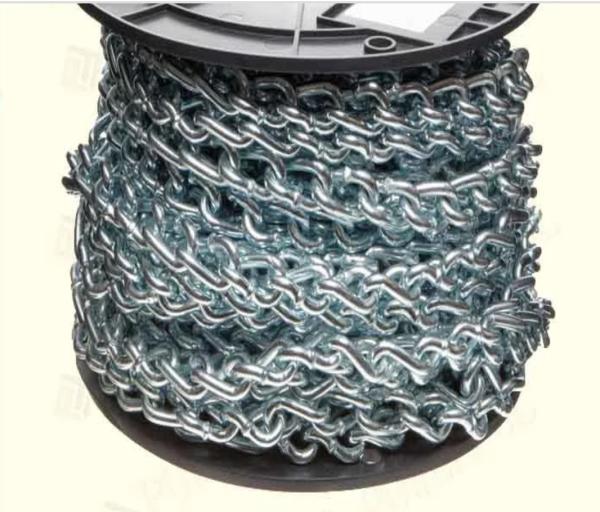

Alloy Steel Anti Skid Chains Carburizing Snow Tire Chains Twisted Link

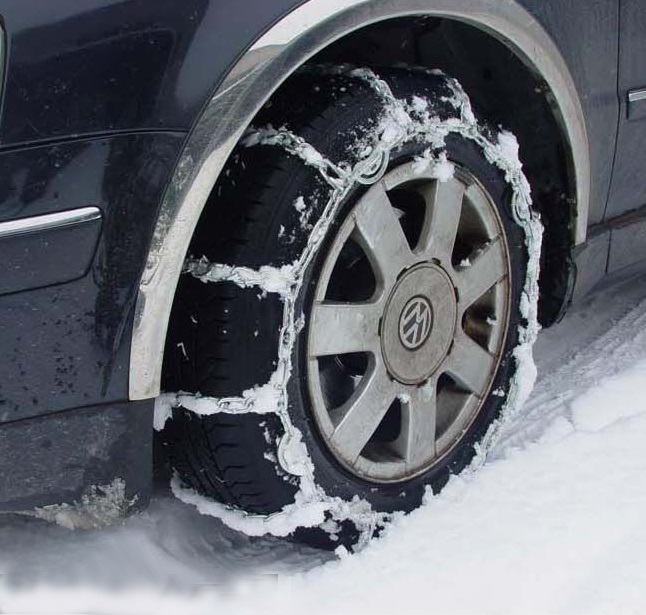

Anti-skid chains(Snow chain)
Product Feature:
Snow chains KN12mm Passenger car, anti-skider chain,tire chain
for passenger car ,quick amouting type,TUV/GS V5117 certificate
Snow chains KN12mm Passenger car, anti-skider chain,tire chain
for passenger car ,quick amouting type
section cross chain link, D3.0x2.5mm, ORD3.0x3.5mm ,OR D3.8x3.5mm
1 KNS is Net type
2This type of snow chain is for passenger car. Meet "S" ckearence.
3.Case hardened and zinc-plated steel chain.
4. Quick and easy mounting without moving vehicle by means of
flexible steel
cable hoop with ball and socket connection mechanism.
5.Simple tensioning using ratchet system.
6.Smooth running thanks to diagonal tread net pattern.
7.Chains can be used on both sides - reversible, therefore doubling
service life.
8.TUV/GS certificate promise the good quality
9.Accessories: 4 pcs of repair links and 1 pair of PVC glove.
10.Packing: 1pair/plastic box or handbag. 5 pairs/carton
Product Description:
Suitable Tire Size Table
1.European standard snow chain
| ITEM | TIRE SIZE |
| 010 snow chain | 125-12 165/70-10 35/70-13 140/70-12 145-10 145/70-12 155/80-10 500-10 150/65-315 |
| 020 snow chain | 145/70-12 60/60-315 155/70-12 160/65-315 35-13 135/70-13 140-12 145/70-13 550-12 155/65-13 135-12 165/55-13 175/50-13 150/65-340 145-12 |
| 030 snow chain | 150/65-345 150-12 160/65-340 135-14 165/60-14 125-15 165/60-13 65/70-12 165/65-13 155/65-14 185/55-13 175/60-13 155/65-340 155/70-13 560-12 145-13 155-1 140-13 |
| 040 snow chain | 175/70-1 55/70-14 165/65-14 90/55-340 65/70-13 600-12 180/65-315 180/60-340 155-13 175/65-13 175/60-14 180/60-13 170/65-340 135-15 195/55-13 145-14 |
| 050 snow chain | 520-14 5/70-13 155/70-15 175/65-14 190/55-365 165/60-15 600-13 180/65-340 195/60-13 155-14 560-13 185/55-14 185/50-15 185/65-13 185/60-14 165-13 560-14 195/50-14 165/70-14 170/65-365 145-15 590-13 |
| 060 snow chain | 165/75-14 175/70-14 185/65-14 195/65-340 560-15 185/70-13 185/55-15 165/70-15 205/60-13 155-15 195/60-365 195/60-14 175-13 195/50-15 195/65-13 175/65-15 195/55-15 200/65-340 180/65-365 |
| 070 snow chain | 210/50-365 175/75-14 175/70-15 195/65-14 195/60-15 205/50-15 205/55-14 195/50-16 600-15 200/60-365 200/55-390 200/65-340 185/60-15 195/70-13 205/65-13 210/55-365 205/55-15 180/65-390 220/50-365 195/55-15 185/70-14 640-13 185/65-15 175-14 205/60-14 |
| 080 snow chain | 195/60-15 175-14 195/70-14 225/55-14 210/55-390 165-15 205/65-14 650-14 185/75-14 185/70-15 215/60-14 205/60-15 185-14 225/50-15 205/55-15 185-13 220/55-365 195/65-15 215/50-16 205/70-13 195/75-14 205/50-16 200/60-15 190/65-390 200/60-390 175-15 210/65-365 |
| 090 snow chain | 205/55-16 195/70-15 205/65-15 225/50-16 175-16 175/75-16 225/60-14 225/55-15 205/60-16 185-15 205/70-14 220/55-390 215/60-15 215/55-16 195-14 |
| 100 snow chain | 215/70-14 225/60-15 230/60-15 205-14 215/65-16 215/60-16 205/70-15 235/50-16 240/55-390 215/70-15 225/60-16 220/65-390 235/55-15 225/55-16 195-15 235/60-15 215/65-15 225/65-15 |
2. Tire size table for USA users(Snow chain)
| ITEM NO | TIRE SIZE |
| 1110 | 145R12 135R13 |
| 1114 | 600-12 520-13 615-13 520-14 |
| 1118 | 560-13 600-13 645-13 560-14 |
| 1122 | 645-14 695-14 560-15 590-15 |
| 1126 | 175R-13 185R-13 165R14 |
| 1130 | 7.35-14 6.85-15 185R14 195/70R-14 |
| 1134 | 185R-14 195R-14 205/70R-14 215/70R-14 |
| 1138 | 8.15-15 8.25-15 205R-15 215R-15 |
| 1142 | 8.55-15 8.85-15 9.00-15 215R-15 |
| 1206.1806 | 600-12 155R-12 5.20-13 6.15-13 145R-13 155R-13 165/70R-13 135R-14 |
| 1207.1807 | 5.60-13 6.00-13 6.45-13 165R-13 175R-13 5.60-14 155R-14 |
| 1210.1810 | 6.95-14 175R-14 5.90-15 6.00-15 6.85-15 165R-15 175/70R-15 |
| 1217.1817 | 6.50-13 6.00-14 6.45-14 175/70R-14 155R-15 |
| 1230.1830 | 7.00-13 185R-13 195/70R-13 7.35-14 185R-14 185/70R-14 |
| 1240.1840 | 7.00-14 7.75-14 195R-14 205/70R-14 6.50-15 7.35-15 185R-15 195R-15 |
| 1250.1850 | 7.00-15 8.85-15 225R-15 230R-15 H70-15/HR70-15 |
| 1254.1854 | 8.25-14 8.55-14 205R14 315/0R-14 7.75-15 8.15-15 205R15 205/70R-15 215/70R-15 |
| 1255.1855 | 8.85-14 7.60-15 8.45-15 8.55-15 215R-15 F70-15 FR70-15 G70-15 GR70-15 |
| 1262.1862 | A60-13 AR60-13 |
| 1263.1863 | B60-13 BR60-13 |
| 1264.1864 | C60-13 CR60-13 D60-13 DR60-13 D60-13 D60-14 DE60-14 |
| 1265.1865 | C60-13 ER60-13 E60-14 ER60-14 E60-15 ER60-15 |
| 1266.1866 | F60-14 FR60-14 G60-14 GR60-14 F60-15 FR60-15 |
| 1267.1867 | H60-14 HR60-14 J60-14 JR60-14 G60-15 GR60-15 H60-15 HR60-15 |
| 1268.1868 | J60-15 JR60 -15 L60-15 LR60-15 |
| 1269.1869 | L60-14 LR60-14 |
| 1284.1884 | 9.00-15 9.15-15 1.78-15 LR78-15 |
| 2201.2801 | 7.00-24 6.00-14LT |
| 2203.2803 | 6.70-15LT 6.00-16LT |
| 2206.2806 | 7.10-15LT 6.50-16LT |
| 2209.2809 | 7.00-14LT EP78-14LT CR78-15LT |
| 2211.2811 | 7.00-15LT 7-17.5LT 9.00-15 9.15 -15 L78-15/LR 78-15 |
| 2214.2814 | 7.50-17 7.00-18 8-19.5 7-22.5 |
| 2216.2816 | 8.00-16.5LT GR78-15LT HR78-15LT FR78-16LT |
| 2219.2819 | L84-15 235R15 7.00-15TR 7.50-15LT 7.00-16LT 8-17.5 |
| 2221.2821 | 7.50-16LT 9.50-16.5LT 7.00-17 |
| 2228.2828 | 8.25-15TR 8.25-16TR |
| 2229.2829 | LR78-16LT |
| 2233.2833 | 6.50-20 7.00-20 |
| 2237.2837 | 9.00-16LT 7.50-20 8-22.5 |
| 2239.2839 | 8.25-20 9-22.5 |
| 2241.2841 | 9.00-20 |
| 2245.2845 | 10.00-20 11-22.5 |
| 2249.2849 | 10.00-22 11-24.5 |
| 2251.2851 | 11.00-20 12-22.5 |
| 2253.2853 | 11.00-24 |
| 2255.2855 | 12.00-20 11300-20 12-24.5 |
| 2257.2857 | 12.00-24 |
| 2271.2871 | 14.00-20 |
| 2273.2873 | 14.00-24 |
| 4206.4806 | 650-16LT |
| 4211.4811 | 7-17.5LT |
| 4214.4814 | 7.5-17 7.00-18 8-19.5 7-22.5 |
| 4217.4817 | 8.00-16.5LT |
| 4219.4819 | 7.50-17 7.00-15TR 8.75 -16.5L 8-17.5 |
| 4221.4821 | 7.50-16LT 9.50-16.5LT 7.00-17 |
| 4222.4822 | 7.50-20 8-22.5 |
| 4231.4233 | |
| 4231.4831 | 8.25-15TR |
| 4233.4833 | 6.50-20 7.00-20 |
| 4239.4839 | 8.25-20 9-22.5 |
| 4241.4841 | 9.00-20 10-22.5 |
| 4245.4845 | 10.00-20 11-22.5 |
| 4249.4849 | 10.00-22 11-24.5 |
| 4251.4851 | 11.00-20 12-22.5 |
| 4253.4853 | 11.00-24 |
| 4255.4855 | 12.00-20 11.00-22 12.00-45 |
| 4257.4857 | 12.00-24 |
| 4271.4871 | 14.00-20 |
| 4273.4873 | 14.00-24 |
|
|
