US Type Rigging Hardware G2130 Safety Bolt Bow Shackle

ZHENJIANG FRESH MARINE SUPPLY CO.,LTD
Contact Now
  • Product Details
  • Company Profile

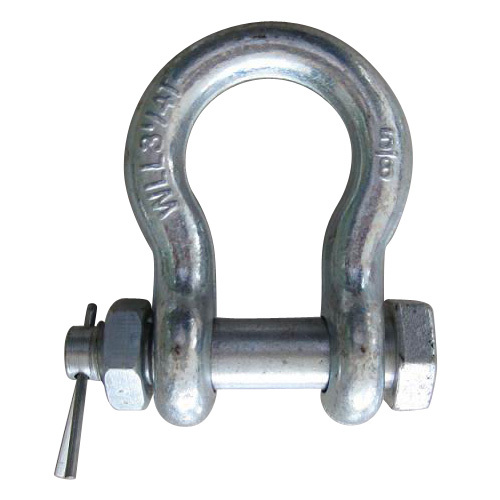

US Type Rigging Hardware G2130 Safety Bolt Bow Shackle

Real Manufacturer Of G2130 Shackle

Powerful MachineryUS Type HDG Bolt Type Carbon Steel Bow Shackle Price
Quick Details
US Type Rigging Hardware G2130 Safety Bolt Bow ShackleUS Type Rigging Hardware G2130 Safety Bolt Bow Shackle

Size -1/2"-4"
Material - Shackle Body: Carbon Steel Shackle Pin: Alloy Steel
Surface - Galvanized,painted and others
Technology - forged
Safety Factor - 4:1

Introduction
this products is used for lifting, pullling and other usages.

Production

Powerful MachinerySpecifications

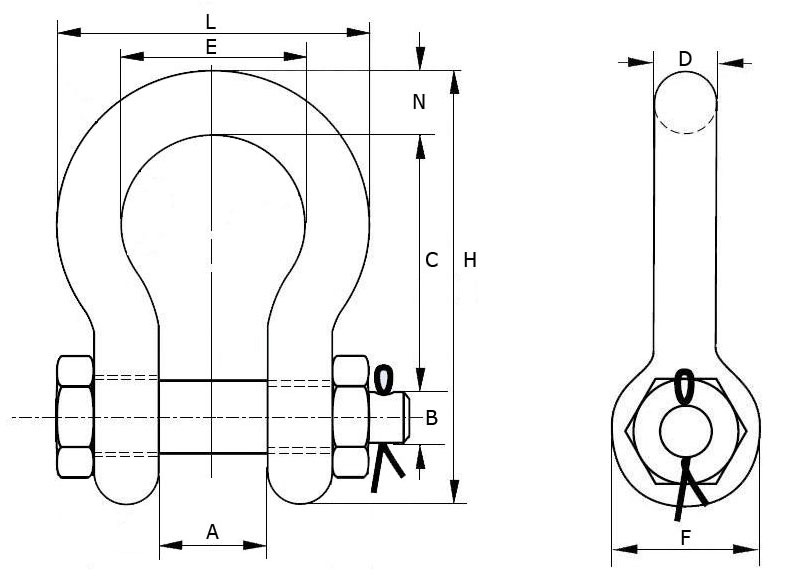

U.S. TYPE DROP FORGED BOLT TYPE ANCHOR SHACKLE(G2130)

SIZEDIA. OF PINWEIGHT(KG/PC)WLL
IN.IN.ANCHOR TYPETON
1/2"5/8"0.362
5/8"3/4"0.763-1/4
3/4"7/8"1.234-3/4
7/8"1"1.796-1/2
1"1-1/8"2.788-1/2
1-1/8"1-1/4"3.759-1/2
1-1/4"1-3/8"5.3112
1-3/8"1-1/2"6.9813-1/2
1-1/2"1-5/8"9.4317
1-3/4"2"15.3825
2"2-1/4"23.735
2-1/2"2-3/4"44.5755
3"3-1/4"69.8585
3-1/2"3-3/4"120.2120
4"4-1/4"153.32150
