| Brand Name : | FRESH CHAIN |

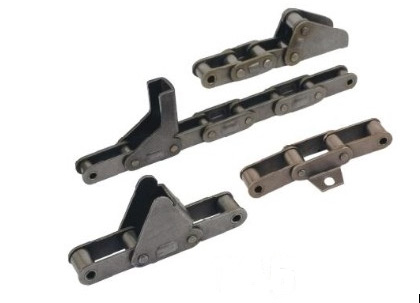

Agricultural chain is also referred as agricultural roller chain. It is one of the roller chains used for agricultural machine. It includes several types. Like CA type steel agricultural chains and S type steel agricultural chains. Our agricultural chains are strictly built in accordance with ISO487. The chains are made of premium steel alloy, manufactured and assembled by automatic machines, advanced heat-treatment and surface consolidating techniques. And they are typically applied in combine harvesters, round balers, feed wagon lifts, etc. The main specification includes:S32,S42,S45,S52,S55,S55R,S62,S77,S88 etc.
| Pitch | Roller Diameter | Width Between Inner plate | Pin Diameter | Pin Length | Plate Diamension | Ultimate Tensile Strength | Average Tensile Strength | Weight Per Meter | |||
| Chain no. <div align= | p | D1Max | B1min | D2Max | LMax | LcMax | H2Max | TMax | QMin | q | |
| mm | mm | Mm | Mm | mm | mm | Mm | mm | KN/LB | KN | Km/m | |
| S32 | 29.21 | 11.43 | 15.83 | 4.45 | 26.70 | 28.80 | 13.20 | 1.80 | 8.00/1818 | 21.60 | 0.86 |
| S42 | 34.93 | 14.27 | 19.05 | 7.01 | 34.30 | 37.00 | 19.80 | 2.80 | 26.70/6136 | 50.80 | 1.60 |
| S45 | 41.40 | 15.24 | 22.23 | 5.72 | 37.70 | 40.40 | 17.30 | 2.80 | 18.00/4091 | 36.10 | 1.66 |
| S52 | 38.10 | 15.24 | 22.23 | 5.72 | 37.70 | 40.40 | 17.30 | 2.80 | 18.00/4091 | 36.10 | 1.68 |
| S55 | 41.40 | 17.78 | 22.23 | 5.72 | 37.70 | 40.40 | 17.30 | 2.80 | 18.00/4091 | 36.10 | 1.80 |
| S55R | 41.40 | 17.78 | 22.23 | 8.90 | 41.00 | 44.00 | 22.40 | 3.50 | 45.00/10227 | 73.10 | 2.49 |
| S62 | 41.91 | 19.05 | 26.20 | 5.72 | 40.30 | 43.00 | 17.30 | 2.50 | 26.70/6067 | 36.10 | 1.87 |
| S77 | 58.34 | 18.26 | 22.23 | 8.92 | 43.20 | 46.40 | 26.20 | 4.00 | 45.00/10227 | 73.10 | 2.65 |
| S88 | 66.27 | 22.86 | 28.58 | 8.90 | 49.80 | 53.00 | 26.20 | 4.00 | 45.00/10227 | 73.10 | 3.25 |
|
|
