Nickel Plated Double Pitch Roller Chain With ISO / DIN Standard

Double pitch roller chain, also referred as double pitch conveyor chains, are built according ISO and DIN stsndard. Products with attachments are widely used in conveyor applications when loads are low and speeds are moderate. Available variations include larger diameter rollers and hollow pin design. These chains can also be supplied in stainless steel, nickel-plated or zinc-plated versions (oversized roller chains can be steel or engineering plastics).The main specification includes

C2040,C2042,C2050,C2052,C2060H,C2062H,C2080,C2082,C2080H,C2082H, A2040. 208B, A2050, 210B, A2060, 212B, A2080, 216B, A2100, 220B, A2120, 224B and so on.

Double pitch roller chain

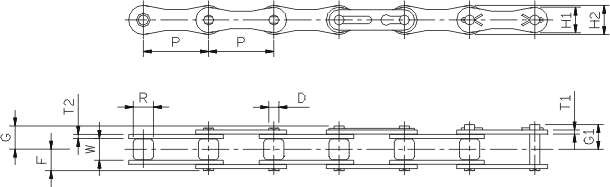

CHAIN NO. (ANSI)	Pitch		Width	Roller	Plate				Pin				Average Ultimate Strength kgf	Approx Weight kg/m
	P		W	Dia	Height		Thickness		Dia	Lengths
	inch	mm	mm	R	H1	H2	T1	T2	D	F	G	G1
A2040	1"	25.40	7.94	7.92	10.10	11.70	1.50	1.50	3.96	8.20	9.35	10.10	1850	0.40
A2050	1-1/4"	31.75	9.53	10.16	12.60	14.60	2.00	2.00	5.06	10.10	11.65	12.60	3100	0.66
A2060	1-1/2"	38.10	12.70	11.91	15.00	17.10	2.40	2.40	5.95	12.50	14.15	15.40	4400	0.93

double pitch conveyor chains

CHAIN NO. (ANSI)	Pitch		Width	Roller	Plate			Pin				Average Ultimate Strength kgf	Approx Weight kg/m
	P		W	Dia	Height	Thickness		Dia	Lengths
	inch	mm	mm	R	H	T1	T2	D	F	G	G1
C2040	1"	25.40	7.94	7.92	11.70	1.50	1.50	3.96	8.20	9.35	10.10	1850	0.49
C2050	1-1/4"	31.75	9.53	10.16	14.60	2.00	2.00	5.06	10.10	11.65	12.60	3100	0.84
C2060H	1-1/2"	38.10	12.70	11.91	17.10	3.10	3.10	5.95	14.10	15.70	16.60	4400	1.45
C2080H	2"	50.80	15.88	15.88	23.00	3.90	3.90	7.94	17.90	---	20.80	8000	2.41
C2100H	2-1/2"	63.50	19.05	19.05	28.90	4.70	4.70	9.52	21.70	---	24.90	12000	3.50
C2120H	3"	76.20	25.40	22.20	35.00	5.60	5.60	11.10	26.98	---	30.57	16000	6.00
C2160H	4"	101.60	31.75	28.58	48.00	7.20	7.20	14.28	34.15	---	38.85	27500	8.90

DOUBLE PITCH ROLLER CHAIN (OVERSIZED ROLLER)

double pitch conveyor chains

CHAIN NO. (ANSI)	Pitch		Width	Roller	Plate			Pin				Average Ultimate Strength kgf	Approx Weight kg/m
	P		W	Dia	Height	Thickness		Dia	Lengths
	inch	mm	mm	R	H	T1	T2	D	F	G	G1
C2042	1"	25.40	7.94	15.88	11.70	1.50	1.50	3.96	8.20	9.35	10.10	1850	0.86
C2052	1-1/4"	31.75	9.53	19.05	14.60	2.00	2.00	5.06	10.10	11.65	12.60	3100	1.32
C2062H	1-1/2"	38.10	12.70	22.23	17.10	3.10	3.10	5.95	14.10	15.70	16.60	4400	2.17
C2082H	2"	50.80	15.88	28.58	23.00	3.90	3.90	7.94	17.90	---	20.80	8000	2.87
C2102H	2-1/2"	63.50	19.05	39.67	28.90	4.70	4.70	9.52	21.70	---	24.90	12000	4.68
C2122H	3"	76.20	25.40	44.45	35.00	5.60	5.60	11.10	26.98	---	30.57	16000	8.00
C2162H	4"	101.60	31.75	57.15	48.00	7.20	7.20	14.28	34.15	---	38.85	27500	13.6
