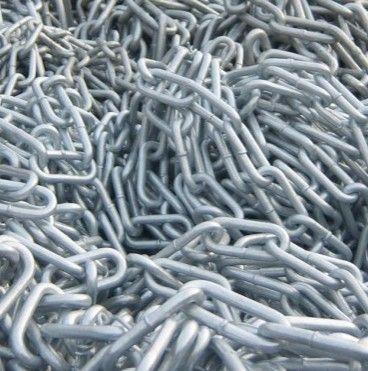

High Strength Welded Link Chain Korean Standard Link Chain
Korean standard link chain is manufactured as per Korea standard.It is the round link chain for Korea market.
| Nominal Size | Material Size | Inside Length | Inside Width | Length Per PC | Weight Per PC | |
| m/m | m/m | m/m | m/m | m | kg | |
| Short Link | 3 | 3.0 | 23.0 | 5.3 | 30 | 4.50 |
| 4 | 4.0 | 22.0 | 7.5 | 30 | 9.00 | |
| 5 | 4.8 | 23.7 | 8.3 | 30 | 12.74 | |
| 6 | 5.8 | 27.3 | 10.0 | 30 | 18.86 | |
| 7 | 7.0 | 31.0 | 12.0 | 15 | 14.14 | |
| 8 | 7.8 | 35.0 | 13.7 | 15 | 17.23 | |
| 9 | 8.8 | 39.0 | 15.2 | 15 | 22.13 | |
| 12 | 12.0 | 38.0 | 18.0 | 15 | 45.00 | |
| 15 | 15.0 | 45.0 | 23.0 | 15 | 75.45 | |
| 16 | 16.0 | 53.0 | 23.0 | 15 | 76.41 | |
| 19 | 19.0 | 58.0 | 25.0 | 10 | 78.28 | |
| Long Link | 4 | 3.9 | 34.3 | 6.2 | 30 | 7.26 |
| 4.5 | 4.5 | 44.4 | 9.2 | 30 | 9.46 | |
| 5 | 4.8 | 45.0 | 11.0 | 30 | 11.31 | |
| 6 | 6.0 | 47.0 | 12.0 | 30 | 18.00 | |
| 7 | 6.8 | 50.0 | 11.4 | 15 | 11.19 | |
| 12 | 12.0 | 50.0 | 18.0 | 15 | 42.00 | |
| 15 | 14.8 | 64.0 | 23.0 | 15 | 61.44 | |
| 19 | 19.0 | 75.0 | 25.0 | 10 | 71.00 | |
|
|
